As a passionate outdoor enthusiast and someone who values precision, I’ve been on the lookout for a piece of equipment that combines top-tier optics with tactical functionality. That’s why the Bushnell Legend 10×42 Ultra HD Tactical Monocular has caught my attention. This isn’t just a simple viewing device; it’s a tool designed for serious users who need more than just a clear image.
What intrigues me most is the integration of the Mil-Hash FDE Reticle. This feature transforms the monocular from a passive observation tool into an active one, allowing for accurate ranging and target acquisition.
Whether I’m in the field scouting for game, or simply pushing my long-range shooting skills, this reticle gives me the ability to estimate distances with a level of precision that a standard monocular can’t match.
The Flat Dark Earth (FDE) color also appeals to me, providing a tactical aesthetic and practical camouflage. The promise of Ultra HD optics, combined with its rugged, tactical design, makes this monocular a compelling choice for anyone who demands high performance and reliability from their gear.
| Feature / Model | Bushnell Legend 10×42 Ultra HD (Mil-Hash) | TOPDON TS004 (Thermal Monocular) | Carson MiniMight MM-618 (6×18) |
|---|---|---|---|
| Type / tech | Optical monocular — ED glass, roof prism, MIL-HASH reticle (mil-based hash marks). | Thermal imaging monocular (IR sensor + display). Detects heat in total darkness/through light obscurants. | Ultra-compact optical pocket monocular (6×, 18 mm objective) with carabiner clip. ( |
| Sensor / Optics / Magnification | 10× magnification, 42 mm objective; ED-Prime glass, BAK-4 prism. | 13 mm lens; IR resolution commonly listed as 256×192 (TOPDON TS004 marketing) or variants; 50 Hz refresh. (Detects up to ~450 | 6× magnification, 18 mm objective; fully coated optics; very small form—designed as a keychain/pocket optic. |
| Field of View / Close focus / Eye relief | FOV ~340 ft @1000 yd (~6.5°); close focus ~6.5 ft; eye relief ~15.2 mm. Good for precision spotting and ranging with reticle. | Horizontal FOV ~17° (manufacturer pages), detection ~410–450 yd (detection ≠ ID; recognition shorter). | FOV ~426 ft @1000 yd (~7.3°); close focus ~? (pocket monoculars have modest close focus); tiny eye relief — intended for casual/fall-back use. Weight ~3.2 oz. |
| Display / Recording | Optical only (no thermal/video). MIL-HASH reticle aids range estimation; no battery required. | Onboard display (electronic), multiple palettes (White/Black/Red/Fusion/Bird), photo/video recording on many retailer listings; Wi-Fi supported for streaming. | Optical only; passive (no power) — comes with soft pouch, carabiner and lens cloth. |
| Battery / Runtime | None required (optical). | Rechargeable battery (5000 mAh listed on some retail pages) → up to ~11 h claimed (varies by usage and SKU). USB-C charging. | None required (optical). Very lightweight (≈3.2 oz / 91 g). |
| Ruggedness / Weather sealing | IPX7 water resistance; O-ring sealed & nitrogen purged; fogproof. Rugged tactical build. | IP67 rated (dust/waterproof) per TOPDON product pages; built for outdoor use. | Basic rubberized body / pouch; not intended for heavy tactical use but pocket-rugged for casual outdoor carry. |
| Weight / Size | ~13.2 oz (≈374 g); length ≈5.4″. Substantial but still handheld. | ~0.47 lb (~7.5–8 oz) depending on listing; compact handheld thermal. | ~3.2 oz (≈91 g); ~3″ long — true pocket/keychain size. |
| Typical best uses | Daylight/dusk precision spotting, range estimation with reticle, tactical/emergency use where optical clarity and magnification matter. ( | Night hunting, search & rescue, security, wildlife detection in darkness or through foliage/smoke — thermal advantage for detection/locating. | Walkaround/backup optic: concerts, hiking, casual birding, quick spotting when you want the smallest possible monocular. |
| Price / availability notes | Mid-range optic; some Bushnell Legend tactical SKUs have been listed as discontinued in certain colorways — check retailers. ( | Consumer thermal price bracket (varies by retailer); generally more expensive than simple optics but cheaper than professional thermal scopes. Check seller pages for current stock. | Very inexpensive (pocket monocular price range, often <$30). Widely available. |

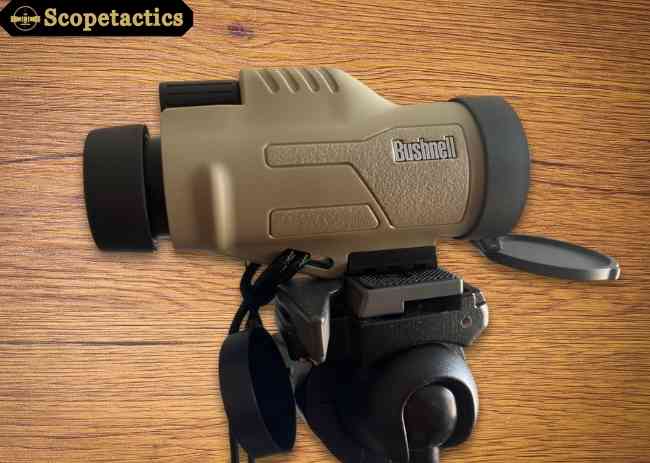

The Bushnell Legend 10×42 Ultra HD Tactical Monocular, with its defining Mil-Hash FDE reticle, represents a compelling convergence of high-performance optics and a rugged, field-ready design.
While the market is saturated with both monoculars and binoculars, this specific model stands out by integrating a tactical ranging tool into a lightweight, portable form factor.
This review will delve into the technical specifications and real-world performance of this monocular, dissecting its key features to provide a comprehensive understanding for the discerning user.
Optical Performance: Beyond the Numbers
At the heart of the Bushnell Legend is its optical system, a suite of technologies that justify its “Ultra HD” moniker. The designation 10×42 refers to a 10x magnification and a 42mm objective lens diameter, a classic combination that provides a powerful image while maintaining a manageable size.
The large objective lens is a critical component, as it serves as the primary light-gathering element. In practical terms, this allows the monocular to deliver a bright image, even in challenging low-light conditions like dawn or dusk.
The quality of the image, however, is not just about the size of the lens. The monocular’s ED Prime Glass, or Extra-low Dispersion glass, is the cornerstone of its high-fidelity viewing. This specialized glass minimizes chromatic aberration, an optical defect that manifests as color fringing around objects.
By using ED glass, the monocular produces a image that is exceptionally clear, sharp, and true to color. The result is a distinct, high-contrast view where fine details are not lost to a blurry halo of color.
Complementing the ED glass is the Ultra-Wide Band Coating, a multi-layered anti-reflection coating applied to all air-to-glass surfaces. This process is a significant technical achievement, as it is custom-tuned to each lens element to maximize light transmission across the entire visible light spectrum.
The effect is profound: a brighter image with superior contrast and color fidelity, as more light is passed through to the eye rather than being reflected away. The monocular also features BaK-4 prisms and a PC-3 Phase Coating. BaK-4 prisms, made from Barium Crown glass, offer a higher refractive index than standard BK-7 prisms, ensuring a perfectly round exit pupil and eliminating vignetting (the darkening of the image at the edges).
The PC-3 Phase Coating further enhances this, correcting the phase shift that occurs in roof prisms, thereby maximizing resolution and contrast.
The Mil-Hash FDE Reticle: A Tool for Precision
For many users, the defining feature of this monocular is the Mil-Hash FDE Reticle. This isn’t just a crosshair; it’s a calibrated optical ruler that allows for precise range estimation and target acquisition. The reticle is marked in milliradians (mils), a unit of angular measurement. .
The primary application of this reticle is ranging. The formula for calculating distance is straightforward: $$ \text{Distance (m)} = \frac{\text{Target Size (m)}}{\text{Reticle Measurement (mils)}} \times 1000 $$ This capability is a game-changer for hunters and tactical professionals, as it provides a quick, manual, and battery-free way to determine the range to a target without a laser rangefinder.
The FDE color of the reticle itself is another tactical benefit, as it is less likely to flare or wash out in bright conditions compared to a traditional black reticle.
Design, Durability, and Ergonomics
The monocular’s build quality is as impressive as its optics. The magnesium chassis provides a lightweight yet incredibly robust foundation, offering superior protection for the internal components without adding unnecessary bulk.
The exterior is coated in a durable, textured rubber armor that not only provides a secure, non-slip grip but also acts as a shock absorber against impacts. One of the most praised features is its all-weather capability, achieved through its waterproof and fogproof construction.
The unit is O-ring sealed to prevent moisture ingress and is nitrogen-purged to eliminate internal fogging. The addition of RainGuard HD, a proprietary permanent water-repellent coating, ensures that water from rain, snow, or condensation beads up and rolls off the lens surface, maintaining a clear view in inclement weather. .
The monocular is also designed for single-handed use, with a conveniently located focus knob that can be easily manipulated with a thumb or index finger. Its compact size and light weight of just 13.2 ounces make it exceptionally easy to carry, whether clipped to a belt or stashed in a pocket.
The twist-up eyecup is another thoughtful ergonomic detail, providing ample eye relief (15.2 mm) that allows both eyeglass and non-eyeglass wearers to comfortably view the entire field of view without strain.
Pros
- Superior Optics
- Tactical Functionality
- Rugged Durability
- All-Weather Performance
- Ergonomics
Cons
- No Image Stabilization
- Single-Eye Fatigue
- Learning Curve
Why Should choose Ultra HD
Based on the text you’ve selected from the Canvas, you should choose the Bushnell Legend 10×42 Ultra HD Tactical Monocular because it expertly combines high-end optical performance with a rugged, tactical design.
Its “Ultra HD” moniker is justified by its superior optics, including ED Prime Glass for crystal-clear, color-accurate images and Ultra-Wide Band Coating to maximize brightness. What truly sets it apart, however, is the integration of the Mil-Hash FDE Reticle, which transforms it from a simple viewing device into a precise tool for accurate range estimation.
This is invaluable for hunters and tactical professionals who need to quickly and manually determine distances. Its durable magnesium chassis and all-weather features like waterproofing and RainGuard HD ensure it can withstand harsh environments, making it a reliable and versatile choice for anyone who demands both optical quality and practical functionality from their gear.
FAQs
What does “Ultra HD” actually mean for this monocular?
While “Ultra HD” is a brand name, it refers to the combination of high-quality optical features that deliver a superior image. This includes ED Prime Glass to eliminate color fringing, BaK-4 prisms for a bright, uniform view, and a custom Ultra-Wide Band Coating that maximizes light transmission. Together, these technologies provide an exceptionally clear, sharp, and high-contrast image, especially in low-light conditions.
How does the Mil-Hash FDE Reticle help with range estimation?
The Mil-Hash reticle is a calibrated ruler inside the monocular marked in milliradians (mils). It allows you to calculate the distance to a target if you know the target’s size. You simply use the reticle to measure the target in mils and then plug that measurement into a straightforward formula. This gives you a fast, manual way to determine range without a battery-powered device.
What makes the monocular durable and all-weather resistant?
The monocular’s durability comes from its lightweight but robust magnesium chassis and a textured rubber armor that provides both a secure grip and shock protection. For all-weather performance, it is O-ring sealed and nitrogen-purged to be fully waterproof and fogproof. It also features a proprietary RainGuard HD coating on the lenses that repels water, ensuring a clear view even in rain or snow.
Why would I choose a monocular over binoculars?
A monocular offers a significant advantage in situations that require portability and single-handed use. It is more compact and lighter than binoculars, making it easier to carry on a belt or in a pocket. The design allows you to use it with one hand, leaving your other hand free for other tasks, which is particularly useful for hunters or tactical professionals.
Final Assessment
The Bushnell Legend 10×42 Ultra HD Tactical Monocular with the Mil-Hash FDE Reticle is a top-tier optical tool for its class. It successfully marries a high-quality optical system with a robust, ergonomic, and practical design.
The ED Prime glass, combined with the Ultra-Wide Band and phase coatings, provides an image that rivals monoculars at a much higher price point. The inclusion of the Mil-Hash reticle makes it a must-have for those in tactical, hunting, or long-range shooting disciplines, adding a layer of functionality beyond simple magnification.
While no single piece of gear is perfect, the few minor drawbacks such as the lack of image stabilization are outweighed by its numerous strengths. For anyone seeking a versatile, durable, and highly capable monocular for a wide range of outdoor and tactical applications, this model represents an outstanding value and a reliable choice.
